To align multiple symmetric buttons in Android View, each button having an image in the center and text at bottom, use the following code:

<LinearLayout
    android:orientation="vertical"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    xmlns:android="http://schemas.android.com/apk/res/android">

    <TableLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent">

        <TableRow
            android:layout_width="fill_parent"
            android:layout_height="0dp"
            android:weightSum="1"
            android:layout_weight="0.5">
            <RelativeLayout
                android:layout_width="0dp"
                android:layout_height="match_parent"
                android:layout_weight="0.5">
                <Button
                    android:layout_width="match_parent"
                    android:layout_height="match_parent"
                    android:id="@+id/button1"
                    android:background="@drawable/right_buttom_btn_line"
                    android:text="Botton 1"
                    android:textSize="18sp"
                    android:gravity="center|bottom"
                    android:singleLine="false"
                    android:paddingBottom="10dp"/>
                <ImageView
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:src="@drawable/location"
                    android:layout_centerInParent="true"/>
            </RelativeLayout>
            <RelativeLayout
                android:layout_width="0dp"
                android:layout_height="match_parent"
                android:layout_weight="0.5">
                <Button
                    android:layout_width="match_parent"
                    android:layout_height="match_parent"
                    android:id="@+id/button2"
                    android:background="@drawable/right_buttom_btn_line"
                    android:text="Botton 2"
                    android:textSize="18sp"
                    android:gravity="center|bottom"
                    android:singleLine="false"
                    android:paddingBottom="10dp"/>
                <ImageView
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:src="@drawable/settings"
                    android:layout_centerInParent="true"/>
            </RelativeLayout>
        </TableRow>

        <TableRow
            android:layout_width="fill_parent"
            android:layout_height="0dp"
            android:weightSum="1"
            android:layout_weight="0.5">
            <RelativeLayout
                android:layout_width="0dp"
                android:layout_height="match_parent"
                android:layout_weight="0.5">
                <Button
                    android:layout_width="match_parent"
                    android:layout_height="match_parent"
                    android:id="@+id/button3"
                    android:background="@drawable/right_buttom_btn_line"
                    android:text="Button 3"
                    android:textSize="18sp"
                    android:gravity="center|bottom"
                    android:paddingBottom="10dp"/>
                <ImageView
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:src="@drawable/location"
                    android:layout_centerInParent="true"/>
            </RelativeLayout>
            <RelativeLayout
                android:layout_width="0dp"
                android:layout_height="match_parent"
                android:layout_weight="0.5">
                <Button
                    android:layout_width="match_parent"
                    android:layout_height="match_parent"
                    android:id="@+id/button4"
                    android:background="@drawable/right_buttom_btn_line"
                    android:text="Button 4"
                    android:textSize="18sp"
                    android:gravity="center|bottom"
                    android:paddingBottom="10dp"/>
                <ImageView
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:src="@drawable/settings"
                    android:layout_centerInParent="true"/>
            </RelativeLayout>
        </TableRow>

        <TableRow
            android:layout_width="fill_parent"
            android:layout_height="0dp"
            android:weightSum="1"
            android:layout_weight="0.5">
            <RelativeLayout
                android:layout_width="0dp"
                android:layout_height="match_parent"
                android:layout_weight="0.5">
                <Button
                    android:layout_width="match_parent"
                    android:layout_height="match_parent"
                    android:id="@+id/button5"
                    android:background="@drawable/right_buttom_btn_line"
                    android:text="Button 5"
                    android:textSize="18sp"
                    android:gravity="center|bottom"
                    android:paddingBottom="10dp"/>
                <ImageView
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:src="@drawable/location"
                    android:layout_centerInParent="true"/>
            </RelativeLayout>
            <RelativeLayout
                android:layout_width="0dp"
                android:layout_height="match_parent"
                android:layout_weight="0.5">
                <Button
                    android:layout_width="match_parent"
                    android:layout_height="match_parent"
                    android:id="@+id/button6"
                    android:background="@drawable/right_buttom_btn_line"
                    android:text="Button 6"
                    android:textSize="18sp"
                    android:gravity="center|bottom"
                    android:paddingBottom="10dp"/>
                <ImageView
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content"
                    android:src="@drawable/settings"
                    android:layout_centerInParent="true"/>
            </RelativeLayout>
        </TableRow>

    </TableLayout>

</LinearLayout>

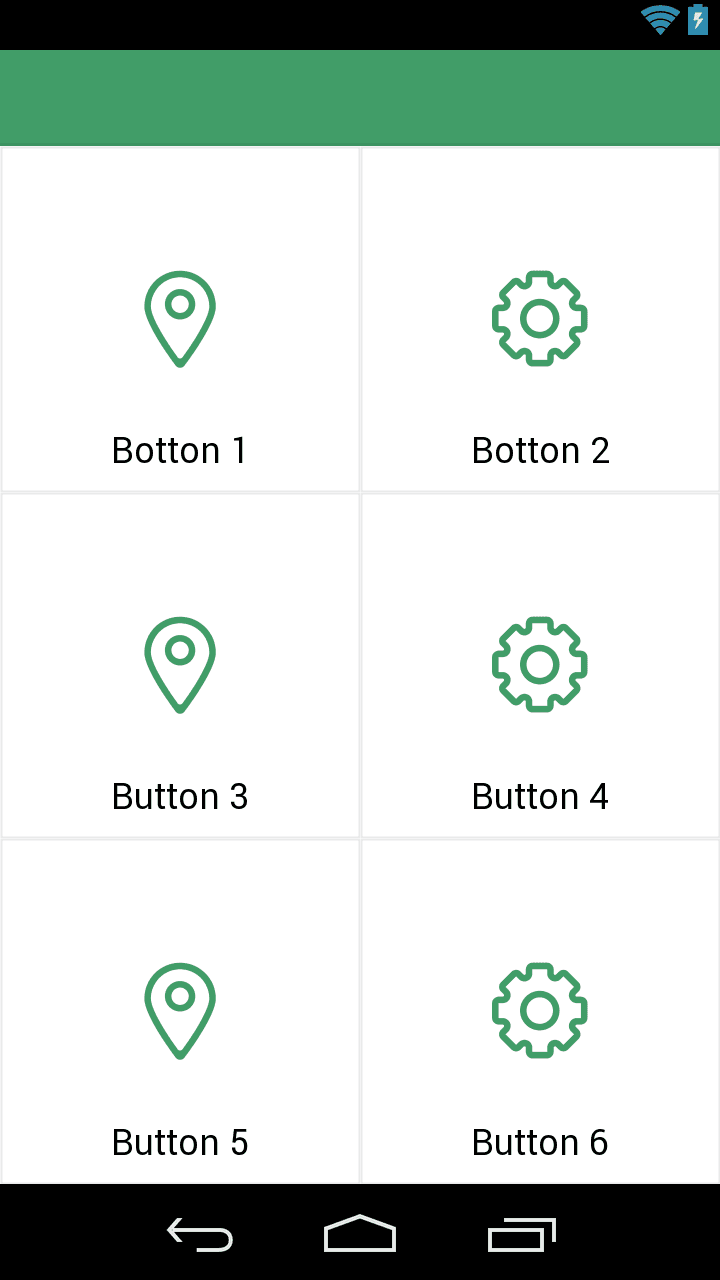

You can find the result in the screenshot below.

Android buttons
